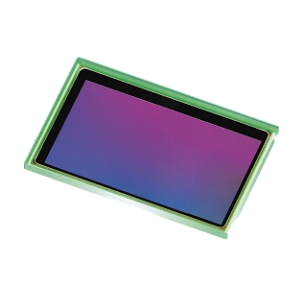

SC1330T

SC1330T

SmartSens Technology

1.23 MP, 60 Frames/sec, 1288 x 968 Resolution Image Sensor

1288 (H) x 968 (V)

1.23 MP

1/2.8 Inch

Rolling Shutter

60 Frames/sec

1.23 MP

4 µm x 4 µm

2.6 to 15 V/Lux-s

100 dB

PixGain® HDR

RGB

46 dB

8 Bit, 10 Bit, 12 Bit, 16 Bit

3 V (Analog), 1.5 V (Digital), 1.8 V (I/O)

CSP

输出格式: RAW RGB, CRA: 15 Degrees

MIPI, DVP, LVDS

汽车后视摄像头, 汽车环绕视图摄像头, 汽车可见光摄像头

41-pin CSP package

5.87 mm x 5.31 mm

-40 to 85 Degree C
