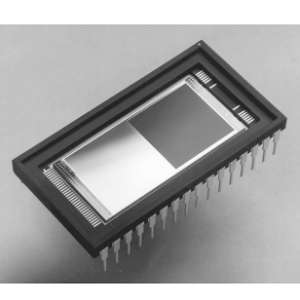

CCD47-20

CCD47-20

Teledyne e2v

1.06 Megapixel Back Illuminated CCD Image Sensor for Imaging Applications

光谱学、科学成像、医学成像

1 MP

1024(H) x 1024(V)

9.5 fps

200 to 1100 nm

13 µm x 13 µm

DIP / DIL / Thru-Hole, Peltier

背照式传感器、帧转移传感器

帧转移 (FT)

50000:1

紫外线、可见光、近红外线

99.999% (并行), 99.9993% (串行)

可拆卸玻璃

13.3 x 13.3 mm2

120 ke- (非反转), 100 ke- (高级反转)

22.7 x 42 mm

100k e-/pix

5 MHz

2 e- rms

4.5 µV/e-

暗信号: 60 to 500 e-/pixel/s

7.5 g

153 to 323 K

153 to 353 K
