STQBU-BT-3012

STQBU-BT-3012

Sintec Optronics

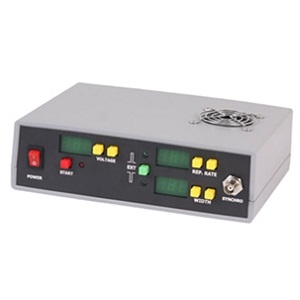

1.2 to 3 kV <20 ns Up to 100 kHz, Up to 0.5 nF Pull-down, Push-pull Pockel cell driver

1.2 to 3 kV

24 VDC

<20 ns

Up to 0.5 nF

1 µs (100 ns in LJ-modification)

110 to 230 VAC, 50 to 60 Hz

1 A

50 to 60 Hz

外部

锂铌酸(LNB), β-钡硼酸(BBO), 重氘化钾二氢磷酸(DKDP)

Up to 50 kHz (CW), Up to 100 kHz (burst-mode)

1 µs - DC

<20 ns

下拉方案，上推方案，外部信号重复

RS-232

10 ns (1 ns in LJ-modification)

下拉方案，上推方案，外部信号重复

225 x 200 x 60 mm

2 kg

0 to 40 Degree C

-20 to 60 Degree C
